Mares Regulator Epic ADJ 82X
Mares Regulator Epic ADJ 82X
Description

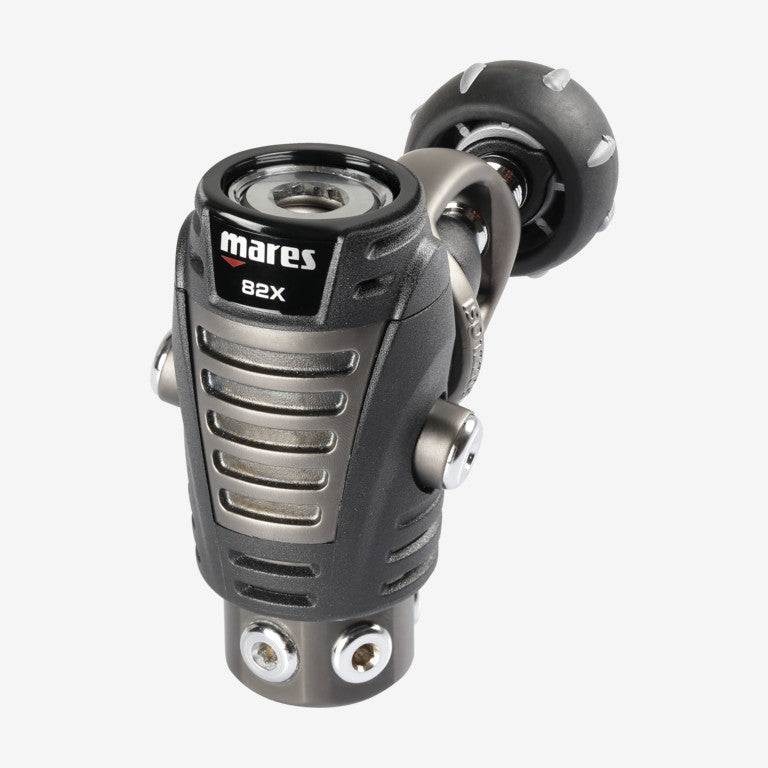

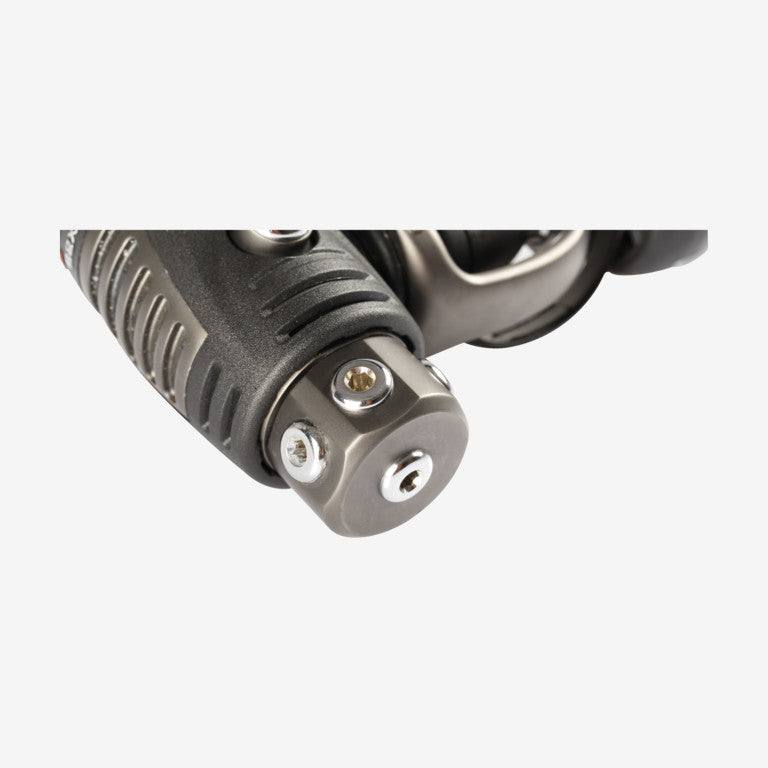

The first stage of the Epic Adj 82X has a 360° rotating turret. The special design of the HP ports (OPD) allows the high-pressure hose and/or computer transmitter to be pre-oriented at all times, regardless of the position of the first stage, offering maximum comfort.
The 82X is a balanced membrane first stage. Thanks to this feature, it always guarantees top performance and reliability at any depth and with any supply pressure. A careful study of air flow has made it possible to optimise the internal air passages that guarantee natural DFC, obtaining high air flow on all the low pressure ports.
The new AST (Auto-Sealing Technology) anti-flooding system is incorporated as standard in the 82X first stage: the system is automatically activated by air flow without any mechanical solution for maximum reliability, creating anti-flooding protection that keeps the first stage dry in all conditions.

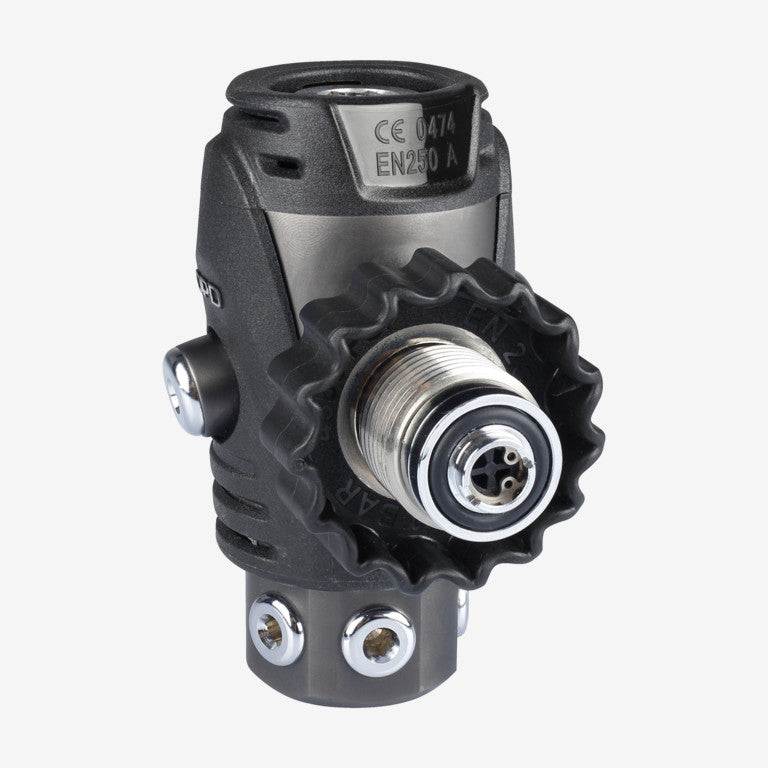

The forging process used to make the body results in a compact, lightweight and attractive product, making the Epic Adj 82X's first stage unique. It is available with an INT or DIN connection.
Second Stage

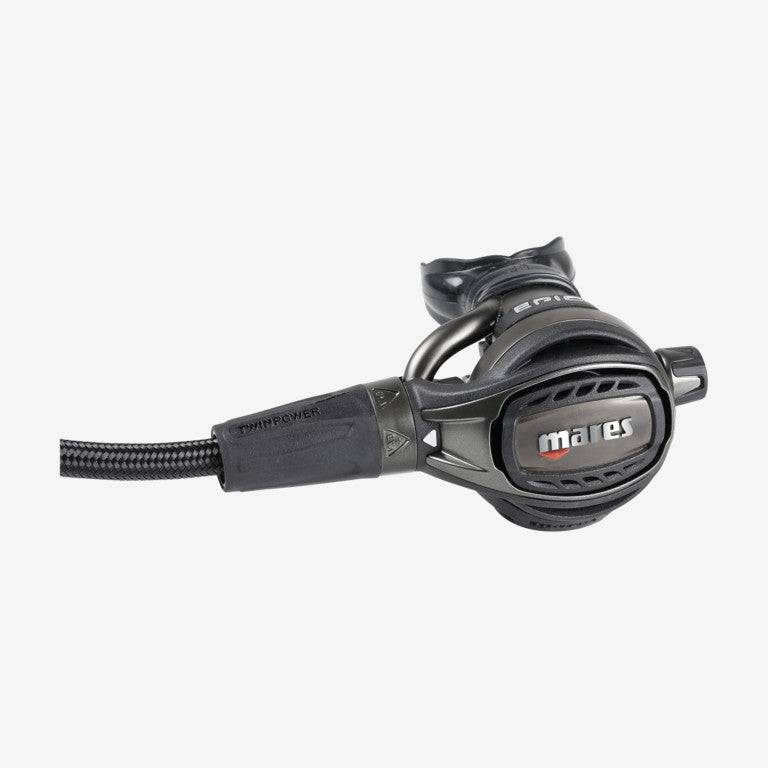

The second stage of the Epic Adj 82X diving regulator was designed by Mares to be the absolute top of the line.
The VAD system exploits the Venturi effect by conveying 90% of the air in to a side bypass. The airflow passes through it without encountering any levers and/or mechanisms, ensuring maximum performance even in extreme situations, such as diving in cold water.
The Twin Power System allows the VAD system's air flow to be controlled, ensuring natural breathing at any depth and providing the necessary amount of air in relation to the diver's demand.

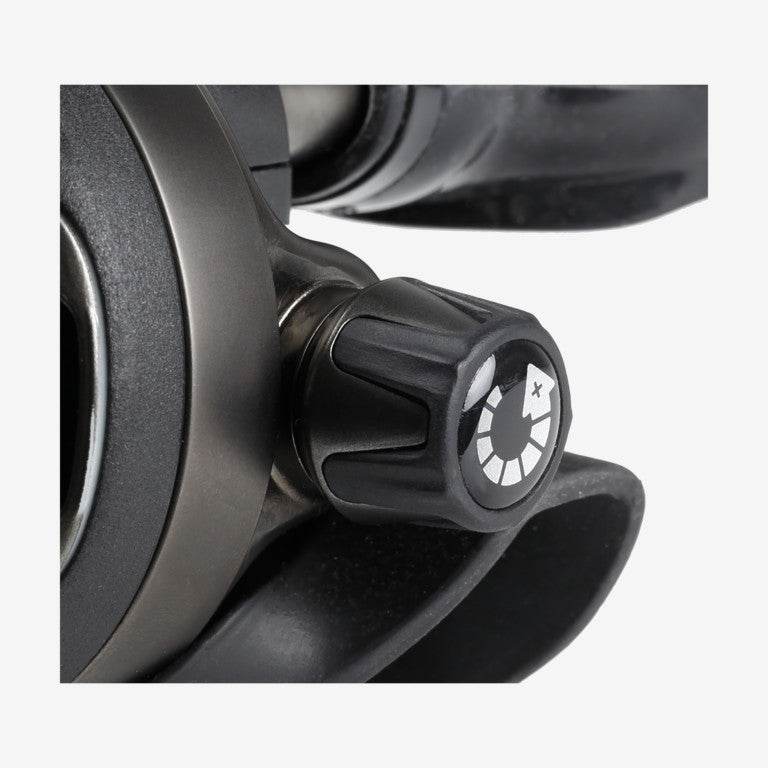

Breathing comfort is adjustable according to the diver's needs thanks to a knob which is easy to use, even with thick gloves; a feature that Mares also applies to the purge button, which is large and pivoting, for easy and immediate use.
PVD technology has been used to create this regulator. PVD is an acronym for Physical Vapor Deposition and indicates a technology used to deposit a thin metal film over various types of substrates. The process takes place in a vacuum chamber in which the metals to be deposited are evaporated. PVD coatings are particularly well-suited to innovative, advanced technical products.
Pneumatic balancing completes the list of advantages of this second stage. It is also available as an Octopus in the classic yellow colour.
Maintenance and care: Mares recommends rinsing and carefully drying the Epic Adj 82X regulator after every dive to avoid dirty and/or blue spots on the PVD surface due to limestone residue.
Facts
MATERIAL:All Metal Technology
FIRST STAGE:Balanced Diaphragm
FIRST STAGE WEIGHT INT:964g / 34oz
FIRST STAGE WEIGHT DIN:790g / 27.9oz
SECOND STAGE WEIGHT:329g / 11.6ozTOTAL WEIGHT (G) INT:1429g / 50.4oz
TOTAL WEIGHT DIN:1255g / 44.3oz
HIGH PRESSURE PORTS:2 HP 7/16" UNF Ports
LOW PRESSURE PORTS:5 LP 3/8" UNF Ports
HOSE TYPE:Superflex Hose
GAS USED:Air
HOSE LENGTH:75cm
